If installed on left: Remove spray guard

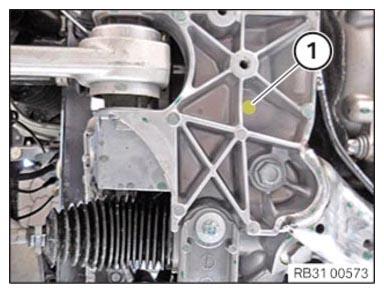

• Loosen screw (1)  from spray guard.

  Courtesy of BMW OF NORTH AMERICA, INC.

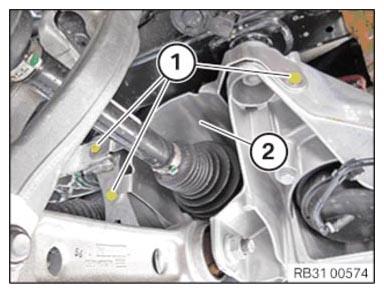

• Loosen screws (1)  from spray guard (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

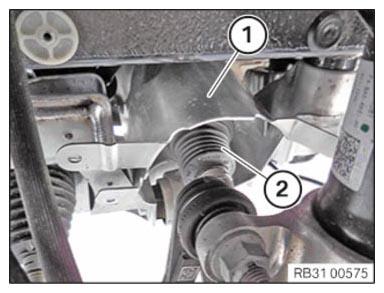

• Leave the spray guard (1)  loose on output shaft (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.
