Remove the underbody protection of the steering gear

Preliminary work

• Refer to REMOVING THE FRONT UNDERBODY PROTECTION .

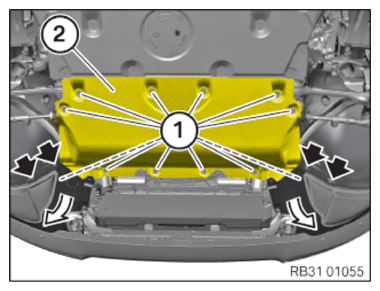

• Version A:

  Release the screws (arrows) of the wheel arch cover on the bottom wheel arch cover.

  Fold the bottom wheel arch cover to the side.

  Loosen screws (1)  .

  Remove underbody protection (2)  of the steering gear.

  Courtesy of BMW OF NORTH AMERICA, INC.

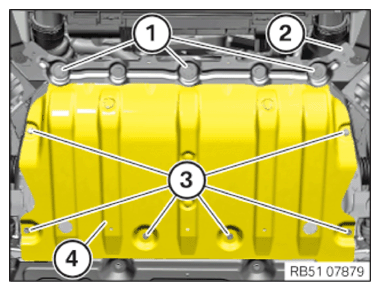

• Version B:

  Loosen screws (1)  .

  Remove holder (2)  for the skid plate.

  Loosen screws (3)  .

  Feed out and remove the underbody protection (4)  of the steering gear.

  Courtesy of BMW OF NORTH AMERICA, INC.
