Motor oil change (W20) (i3 base, i3s)
Special tools required:
- 0 401 554
Compliance with the following points is mandatory before beginning work:
Attention!
It is essential to adhere to the exact capacities specified.
Overfilling the engine with motor oil will result in engine damage .
Test period and dripping times must be observed.
Recycling:
Catch and dispose of used oil in a suitable collecting vessel.
Observe country-specific waste disposal regulations.

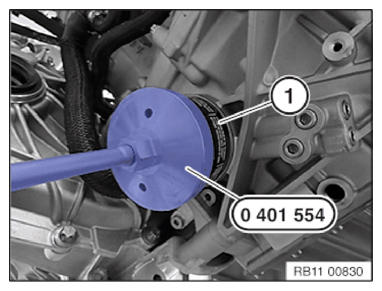

Release oil filter (1) with special tool 0 401 554.
Installation note:
Lightly oil sealing ring.
Tightening torque: 11 42 1AZ .

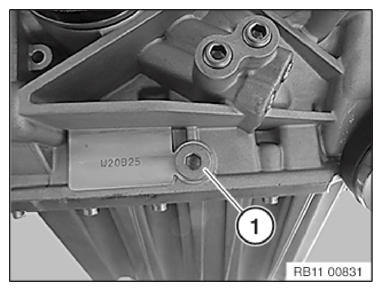

Remove oil drain plug (1).
Installation note:
Replace the sealing ring.
Tightening torque: 11 13 2AZ .
Open the service flap in the trunk.

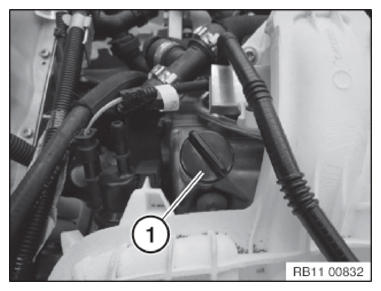

Open oil filler cap (1).
Cover oil filler neck with an absorbent rag.
Pour in MOTOR OIL with a suitable funnel.
Attention!
Mount sealing cap on oil filler neck and check for firm fit/tightness.
Assemble engine.
Checking oil level:
- Park vehicle on a horizontal surface.
Service Function:
Carry out leak test.
- DME.
Range extender, digital engine electronics
Range extender service start.
Check engine and oil filter for tightness.
