11 14 202 Removing and installing/replacing radial shaft seal (W20)

Special tools required:

• 11 4 470
• 23 4 100

Preliminary work needed:

• Remove drive unit (range extender). Refer to REMOVING AND INSTALLING COMPLETE DRIVE UNIT (RANGE EXTENDER) (I3 BASE, I3S) .
• Remove engine from drive unit. Refer to REMOVING AND INSTALLING ENGINE FROM DRIVE UNIT (I3 BASE, I3S) .
• Refer to REMOVING RANGE EXTENDER ELECTRIC MACHINE .

Release all screws (1).

Tightening torque 11 14 3AZ .

Remove generator lid (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surface (1) on generator lid and sealing surface on crankcase with special tool 11 4 470  .

Courtesy of BMW OF NORTH AMERICA, INC.

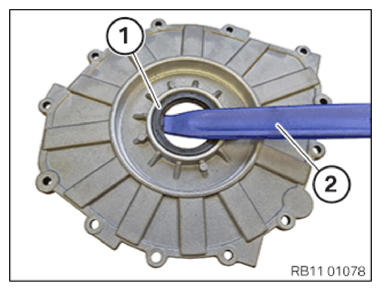

Remove radial shaft seal (1) with a suitable mounting lever (2).

Courtesy of BMW OF NORTH AMERICA, INC.

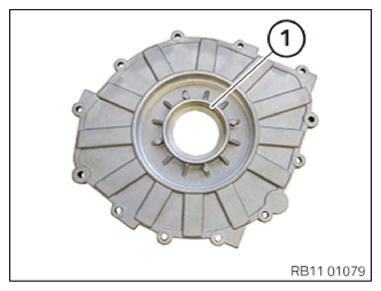

Check sealing surface (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

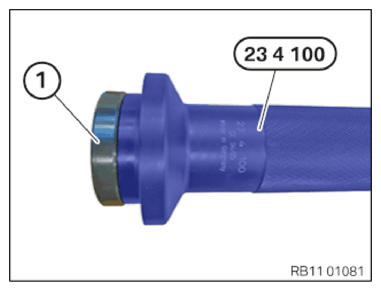

Position sealing ring (1) on special tool 23 4 100  .

Courtesy of BMW OF NORTH AMERICA, INC.

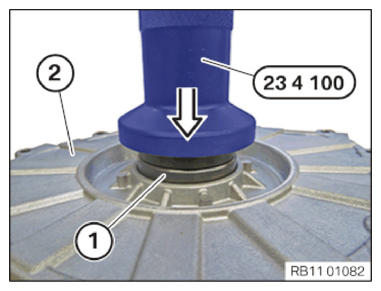

Press sealing ring (1) into generator lid (2) with special tool 23 4 100  in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Apply sealing bead with sealing compound 1.7 .

Position generator lid (2) on crankcase.

Insert all bolts (1).

Tightening torque 11 14 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
