11 14 201 Removing and installing/replacing generator lid (W20)

Special tools required:

• 11 4 470

Preliminary work needed:

• Remove drive unit (range extender). Refer to REMOVING AND INSTALLING COMPLETE DRIVE UNIT (RANGE EXTENDER) (I3 BASE, I3S) .
• Remove engine from drive unit. Refer to REMOVING AND INSTALLING ENGINE FROM DRIVE UNIT (I3 BASE, I3S) .
• Refer to REMOVING RANGE EXTENDER ELECTRIC MACHINE .

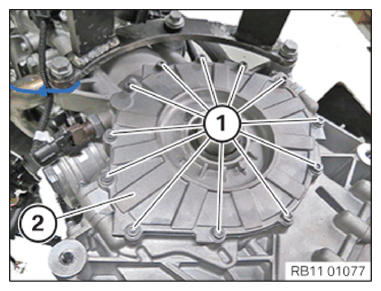

Release all screws (1).

Remove generator lid (2).

Courtesy of BMW OF NORTH AMERICA, INC.

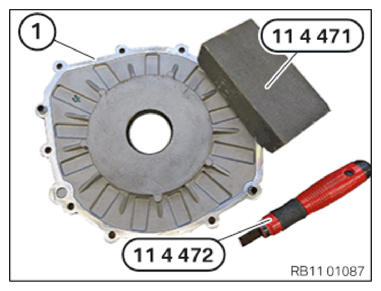

Clean sealing surface (1) on generator lid and sealing surface on crankcase with special tool 11 4 470  .

Courtesy of BMW OF NORTH AMERICA, INC.

Apply sealing bead with sealing compound 1.7 .

Position generator lid (2) on crankcase.

Insert all bolts (1).

Tightening torque 11 14 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
