61 61 800 Basic setting for windshield wipers

Basic setting:

Move wiper drive to wiper park position and keep supplied with current (self-locking facility active).

Mount wiper arm in wiper park position.

Start teach-in (without LIN communication/voltage interruption).

Courtesy of BMW OF NORTH AMERICA, INC.

1. Start diagnostic system

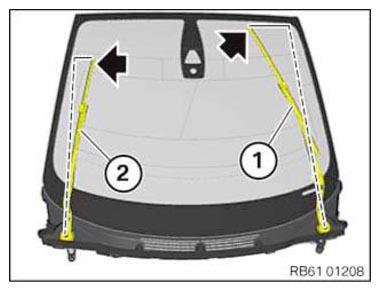

2. Move wiper arm into pre-reference position (1; 2).
3. Manually move driver's side wiper arm from the pre-reference position (1) to the gutter strip (hand on wiper blade tip, not on wiper arm)
4. Manually move passenger's side wiper arm from the pre-reference position (2) to the gutter strip (hand on wiper blade tip, not on wiper arm)
5. Confirm wiper position in diagnostic system

Teach-in was successful if windshield wiper moves back to wiper park position.

During teach-in, it is not permissible to manually push back/reset the wiper arm!

If unsuccessful, the teach-in must be repeated/restarted.
