51 13 116 Remove and install/replace windshield panel cover

Preliminary work needed:

• Refer to REMOVING BOTH WINDSHIELD WIPER ARMS .
• Refer to REMOVING COVER IN FRONT LEFT/RIGHT TRUNK .

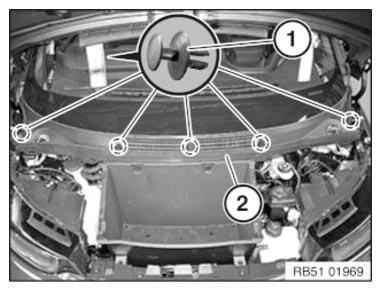

Release expanding rivet (1).

Lift out cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.
