Removing and installing/replacing trim for release mechanism

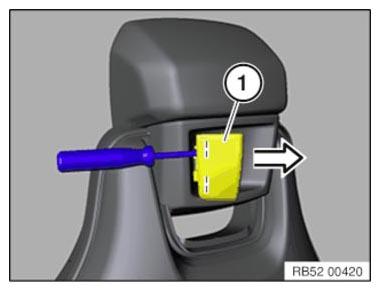

Pull trim (1) on release handle towards rear and, at the same time, unlock in marked area using screwdriver.

Feed out trim (1) from release handle in arrow direction.

G11147310Courtesy of BMW OF NORTH AMERICA, INC.

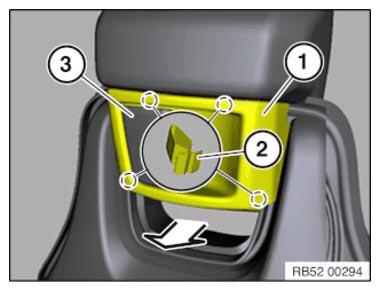

Release trim (1) on clamps (2).

Feed out trim (1) from release lever (3) and remove towards rear.

G11147311Courtesy of BMW OF NORTH AMERICA, INC.

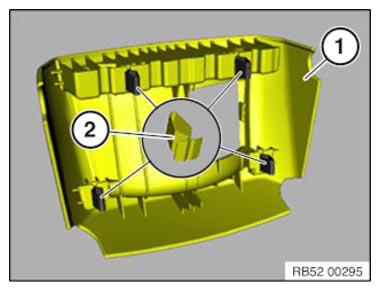

Installation note:

Clamps (2) on trim (1) must not be damaged or missing.

Replace faulty clamps (2).

G11147312Courtesy of BMW OF NORTH AMERICA, INC.
