52 13 028 Removing and installing/replacing backrest frame on driver's seat

IMPORTANT: An airbag module and a pyrotechnical seat belt tensioner are installed in the front seat.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side airbag, resulting in injuries.

Preliminary work needed:

Refer to REMOVING RELEASING MECHANISM .
Refer to REMOVING SIDE AIRBAG .

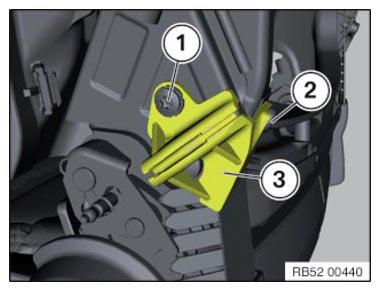

Release expanding rivet (1) on left and right.

Release screws (2) on left and right.

Remove guide (3) for Bowden cable.

Courtesy of BMW OF NORTH AMERICA, INC.

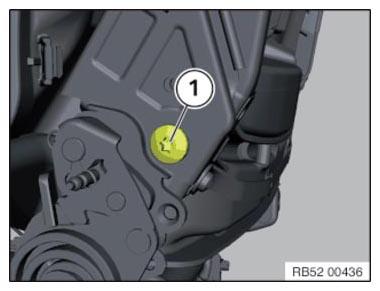

Remove screw (1).

Tightening torque 52 10 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

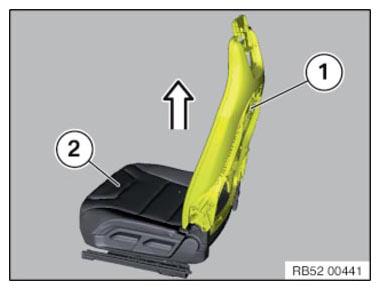

Remove backrest frame (1) upwards from seat mechanism (2).
