Remove thrust field
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.
Preliminary work
- Refer to REMOVING REAR UNDERBODY PROTECTION .
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.

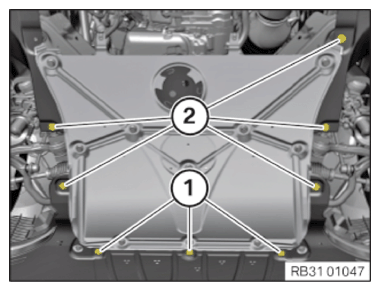

- Loosen screws (1) .
- Loosen screws (2)
.

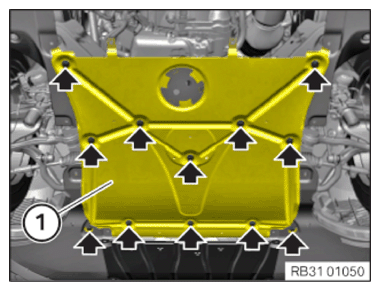

- Remove screws (arrows).
- Feed out and remove the thrust field (1) at left and right on the rear section of the wheel arch cover towards the rear.
