(Removing the air duct for the footwell)

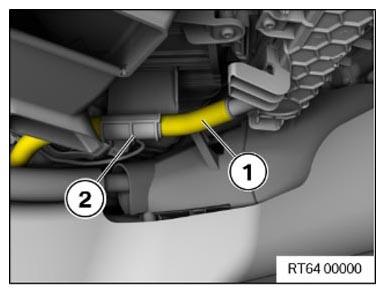

Remove the water drain hose (1) from the bracket (2) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

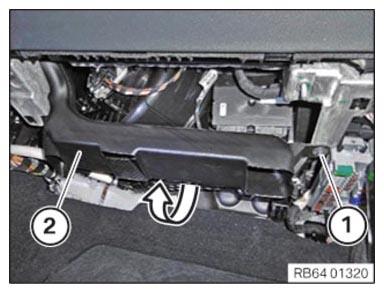

Loosen screw (1).
Disengage the air duct (2) downwards out of the heating and air-conditioning unit.
Thread out and remove the air duct (2) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
