(Removing rear left torsion strut)
NOTE:
TECHNICAL INFORMATION
Driving without torsion strut is prohibited.
Driving without torsion strut is prohibited.

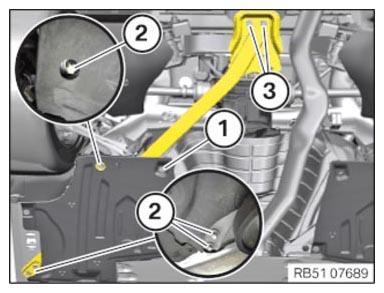

- Loosen screw (1).
- Loosen screws (2).
- Loosen screws (3).

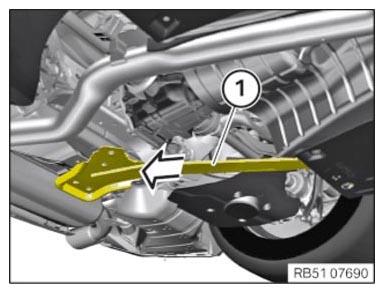

- Guide out and remove the torsion strut (1) at right rear in the arrow direction.
NOTE:
TECHNICAL INFORMATION
Driving without torsion strut is prohibited.
Driving without torsion strut is prohibited.

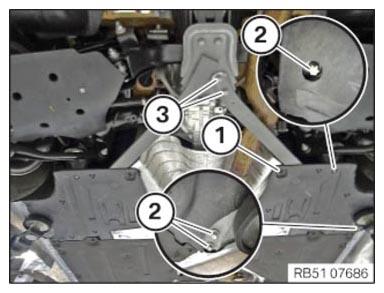

- Loosen screw (1).
- Loosen screws (2).
- Loosen screws (3).

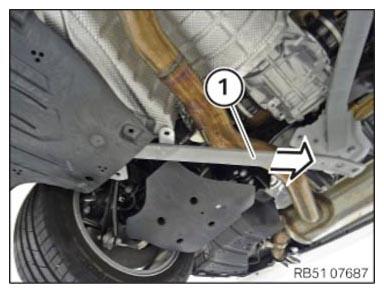

- Feed out and remove the torsion strut (1) at the rear left in arrow direction.
