(Removing left and right brake ventilation duct)

NOTE: Description is for left component only. Procedure on the right side is identical.

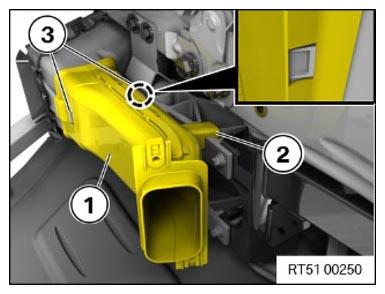

Lift the brake ventilation duct (1) with the guide (2), release it to the rear from the detents (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
