(Partially removing the front right wheel arch cover)

NOTE: Description is for left component only. Procedure on the right side is identical.

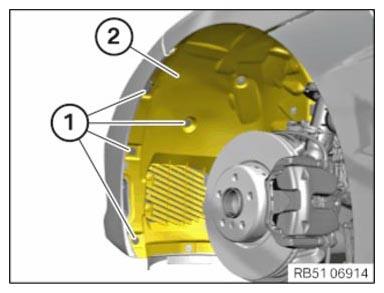

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Loosen screws (1).
• Fold the front wheel arch trim panel (2) to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
