General Orphan Data (2 Of 2)
>>
(Partially removing the charge air line)
(Partially removing the charge air line)
WARNING:
Hot surfaces.
Risk of burning!
Perform all work only on components that have cooled down.

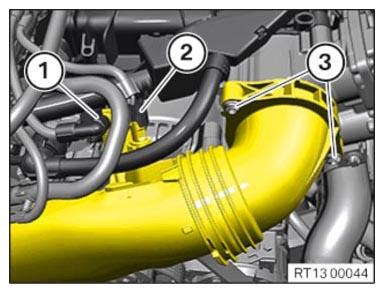

Unlock plug connection (1) and disconnect.
Unlock plug connection (2) and disconnect.
Loosen screws (3).
Courtesy of BMW OF NORTH AMERICA, INC.

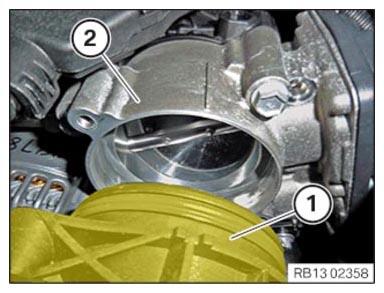

Disconnect the charge air line (1) from the throttle valve (2) and set aside.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
