(Partially installing the mount for the hood seal)
(Partially installing the mount for the hood seal)
NOTE:
Perform the steps on the right and left side.

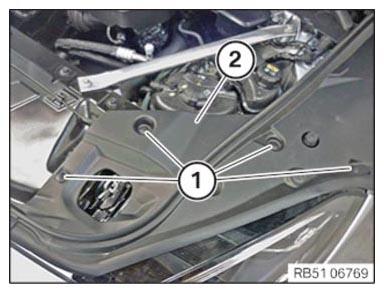

Position mount (2) of the hood seal.
Mount the expanding rivets (1).
Courtesy of BMW OF NORTH AMERICA, INC.
