(Partially installing the front right wheel arch cover)

NOTE: Description is for left component only. Procedure on the right side is identical.

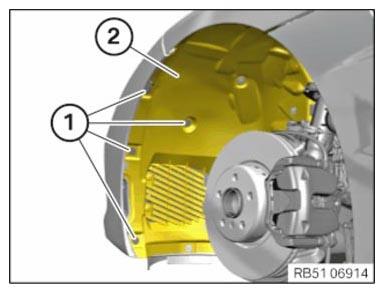

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Correctly position the wheel arch trim panel (2).
• Tighten down screws (1).

(TIGHTENING TORQUES SPECIFICATION)

Wheel arch cover
Screw	Tightening torque	2.6 Nm
Nut	Tightening torque	2.6 Nm
