(Partially installing the charge air line)
- Check the sealing ring (1) on the charge air line (3) for damage and replace, if necessary.

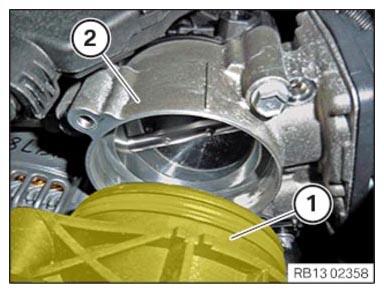

- Connect the charge air line (1) to the throttle valve (2).

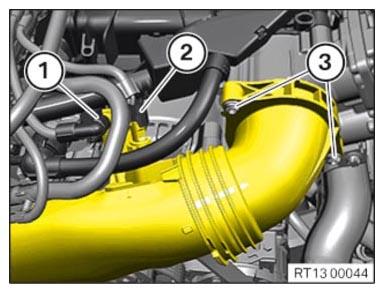

- Tighten down screws (3).(TIGHTENING TORQUES SPECIFICATION)
Charge air line to throttle valve M6x30 tightening torque 8 Nm - Connect connectors (2) and lock.
The connector (2) must engage audibly.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
