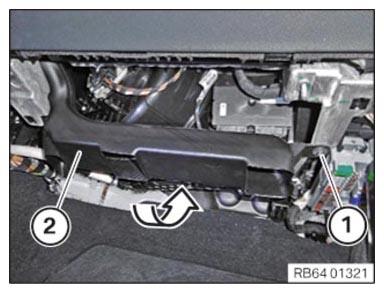

(Installing the right-hand air duct for the footwell)

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the air duct (2) in the arrowed direction.
• Click the air duct (2) into position above the heating and air-conditioning unit.
• Tighten down screw (1).
  (TIGHTENING TORQUES SPECIFICATION)



  Footwell ventilation duct to bracket
  Screw	tightening torque	2.8Nm

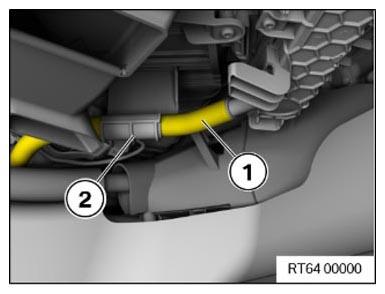

• Insert the water drain hose (1) into the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
