(Installing all ignition coils)
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

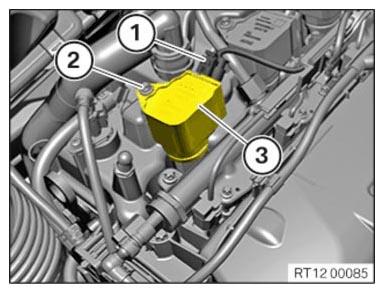

- Install ignition coil (3).
- Tighten down screw (2).(TIGHTENING TORQUES SPECIFICATION)
Ignition coil Screw Tightening torque 8 Nm - Connect connectors (1) and lock.
The connector (1) must engage audibly.

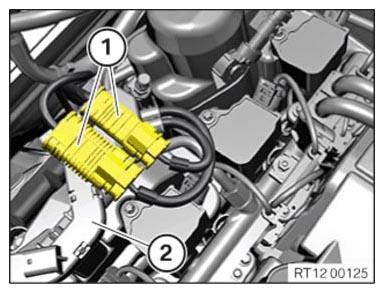

- Attach connector (1) of the primary oxygen sensor and the monitoring oxygen sensor to the cable duct (2).
