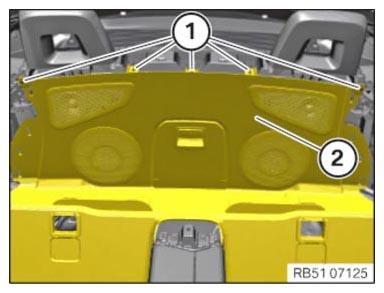

(Attaching the inner panel for the luggage compartment partition wall)
- Correctly position the inner panel for the luggage compartment partition wall (2).
- Tighten down screws (1).
(TIGHTENING TORQUES SPECIFICATION)
| Panel for the luggage compartment partition wall to support |
| Screw |
tightening torque |
2 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
