(Attaching the bracket of the positive battery cable)

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

• Route the positive battery cable without abrasions and do not trap.

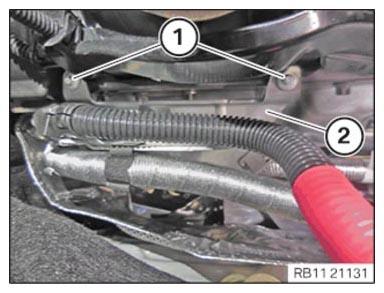

• Feed in the bracket (2) of positive battery cable and install.
• Tighten down screws (1).

(TIGHTENING TORQUES SPECIFICATION)

Holder, positive battery cable to cylinder head cover
6X18	Tightening torque	6 Nm
