(Removing the trim panel for the rear left and right body pillar)

NOTE: Perform the steps on the left and right side.

NOTE: Description is for left component only.
Procedure on the right side is identical.

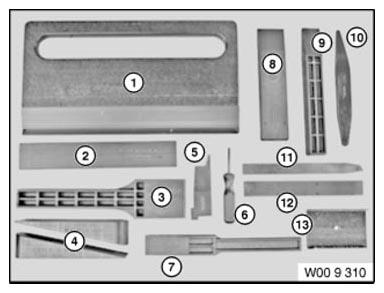

• Get the set of special tools 0 493 752 (00 9 329) ready.

  Courtesy of BMW OF NORTH AMERICA, INC.

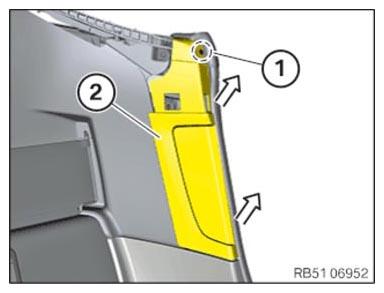

• Loosen screw (1).
• Guide out the trim panel for the body pillar (2) in a forward and upward motion.

Courtesy of BMW OF NORTH AMERICA, INC.
