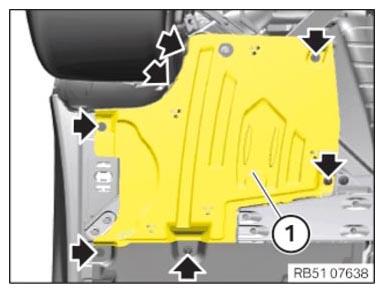

(Removing the tank covers at the bottom left and right hand side)

NOTE: Description is for left component only. Procedure on the right side is identical.

• Unscrew all bolts and nuts (arrows).
• Guide the tank cover (1) out.

Courtesy of BMW OF NORTH AMERICA, INC.
