(Removing the seat cover together with the cushion)

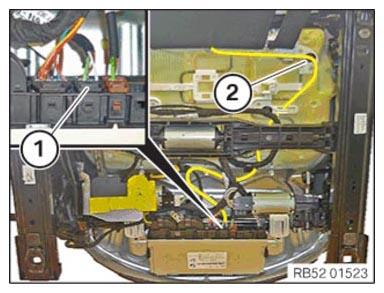

• For equipment specification with seat heating:  Unlock plug connection (1) and disconnect.

  Unclip the cable clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

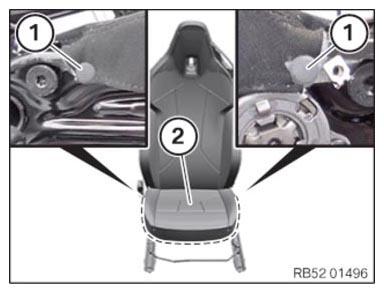

• Use the special tool 2 298 504 to unclip the plastic rivet (1).
• Using the special tool 0 496 571 (00 9 327) , carefully unclip the seat cover (2) within the marked area.

  Courtesy of BMW OF NORTH AMERICA, INC.

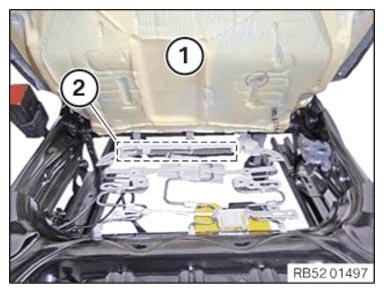

• Position seat cover with cushion (1) as shown.
• Unclip and remove the seat cover together with the cushion (1) within the marked area (2).

Courtesy of BMW OF NORTH AMERICA, INC.
