(Removing the seat belt finisher strip at the left and right)
NOTE:
Perform the steps on the left and right side.
NOTE:
Description is for left component only.
Procedure on the right side is identical.
Procedure on the right side is identical.
- Get the set of special tools 0 493 752 (00 9 329)
ready.

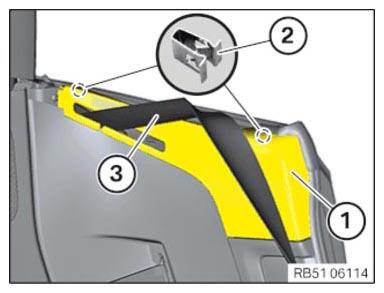

- Guide out the seat belt finisher strip (1) upward and release it at the clamps (2).
- Feed the safety belt (3) out of the seat belt finisher strip (1).
