(Removing the right rear torsion strut)

NOTE: TECHNICAL INFORMATION
Driving without torsion strut is prohibited.

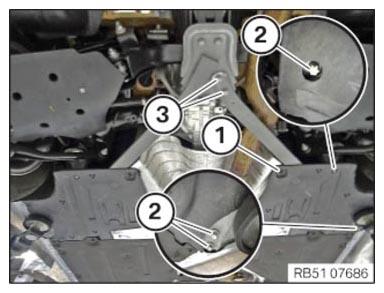

• Loosen screw (1).
• Loosen screws (2).
• Loosen screws (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

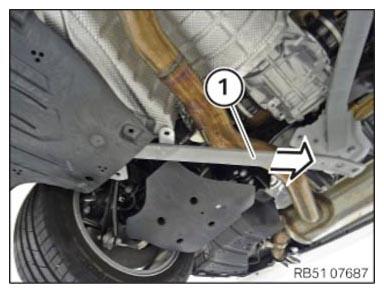

• Guide out and remove the torsion strut (1) at right rear in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
