(Removing the front section of the front wheel arch cover on the left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

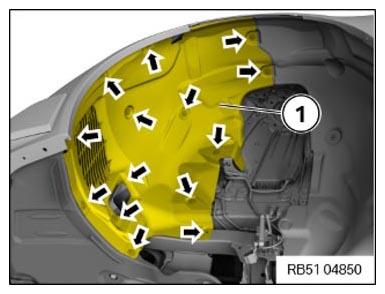

• Remove screws (arrows) and remove front section (1) of the front wheel arch cover.
