(Removing the front passenger knee protection airbag module)
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before working on the airbag, disconnect the negative battery cable from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

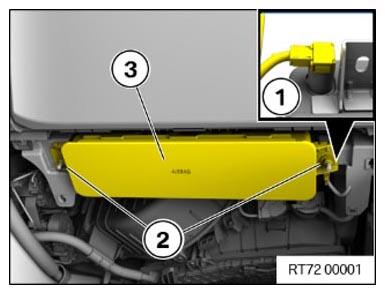

- Unlock plug connection (1) and disconnect.
- Release the nuts (2) and remove the airbag module (3) for the front passenger knee protection.
