(Removing the front bottom side cover)

NOTE: TECHNICAL INFORMATION

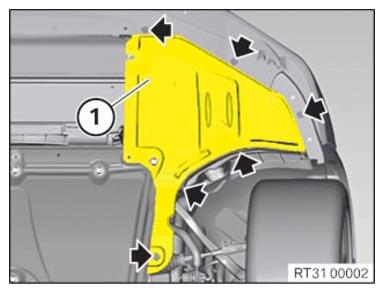

  • Remove screws (arrows).
  • Pull the front cover (1) down and to the side and remove.
G16620587Courtesy of BMW OF NORTH AMERICA, INC.
