(Removing the cowl upper part in the center)

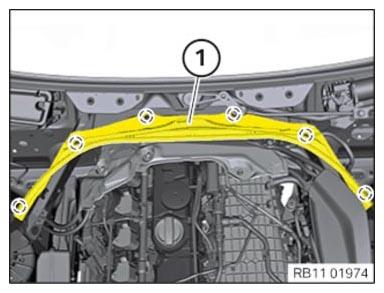

Unscrew the bolts in the marked areas.
Remove the center cowl upper part (1).

G16620584

Courtesy of BMW OF NORTH AMERICA, INC.
