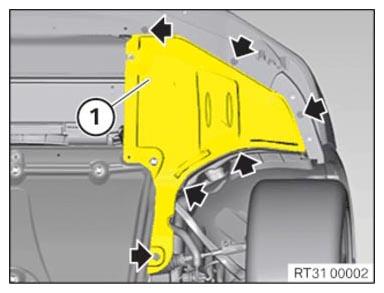

(Removing the bottom front left and right cover)

NOTE: Description is for left component only. Procedure on the right side is identical.

• Remove screws (arrows).
• Pull the front cover (1) down and to the side and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
