(Removing bracket from the center console trim)

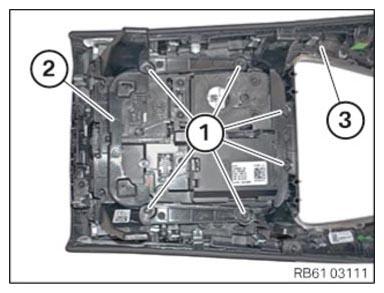

Loosen screws (1).
Remove the bracket (2) from center console trim (3).

G16623627

Courtesy of BMW OF NORTH AMERICA, INC.
