(Remove the center stack trim)
(Remove the center stack trim)

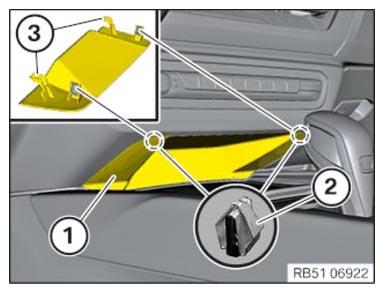

Unclip the trim of the center stack (1) from the clamps (2) in the downward direction using the special tool
0 496 569 (00 9 325)
and remove it from the guides (3) toward the back.
Courtesy of BMW OF NORTH AMERICA, INC.
