(Releasing the ground cable of the seat occupancy mat (CIS))

NOTE: Schematic diagram is for example purposes.
Some parts may differ in certain details.

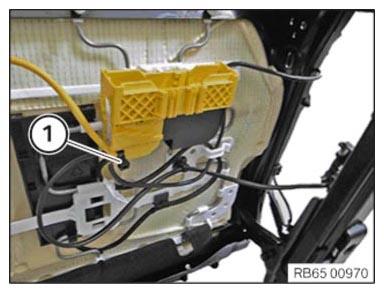

Release cable tie (1).

Courtesy of BMW OF NORTH AMERICA, INC.

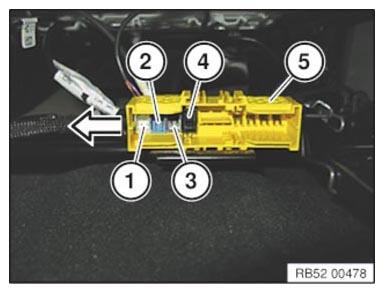

Unlock the connector housing in the sequence (1) to (4) and pull it in arrow direction from the connector housing (5).

Courtesy of BMW OF NORTH AMERICA, INC.

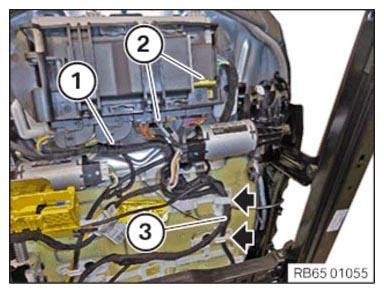

Unlock the connector (1) and put it aside.
Unlock and disconnect the connector (2) for the seat occupancy mat (CIS).
Feed out the cable (3) for the seat occupancy mat (CIS) from the holders (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

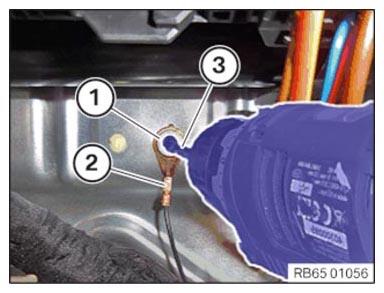

Carefully drill out the rivet nut (1) for the ground cable (2) with a standard tool (3).
Standard tools:

Twist drill for steel

Spiral borer for steel

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

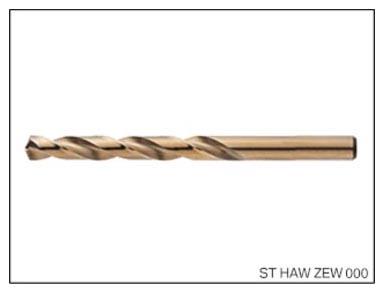

Spiral borer for steel

(Ø = 6 mm)

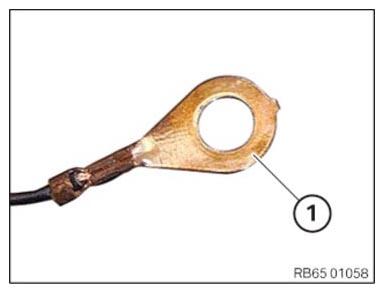

Check the eye (1) for the ground cable for damage. Replace the seat occupancy mat (CIS) if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

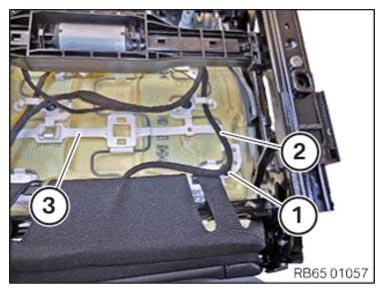

Release the detent (1) for the cable (2) of the seat occupancy mat (CIS) on the seat mechanism (3).

Courtesy of BMW OF NORTH AMERICA, INC.
