(Release the control unit holder)
(Release the control unit holder)

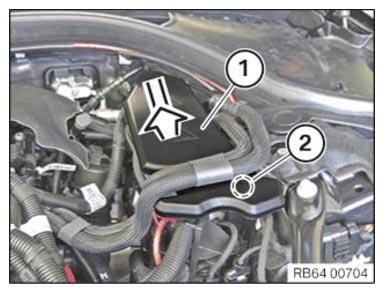

Unclip the cover (1) in this area (2) and remove in the direction of the arrow.
Courtesy of BMW OF NORTH AMERICA, INC.

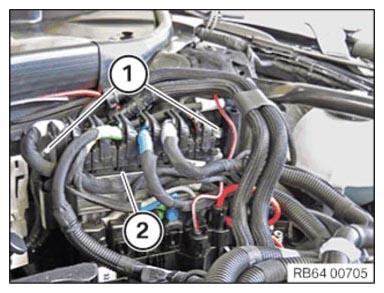

Loosen screws (1).
Remove the E-Box (2) and place to one side.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
