(Installing the covers for the interior rearview mirror)
(Installing the covers for the interior rearview mirror)

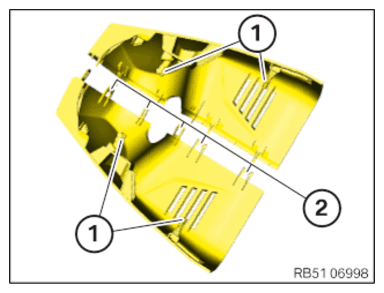

Check detents (1) and (2) for damage.
In case of defective detents (1) or (2), the covers must be replaced.
Courtesy of BMW OF NORTH AMERICA, INC.

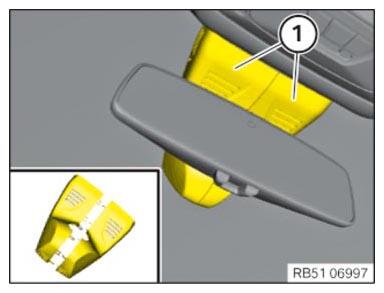

Feed in and engage covers (1).
Courtesy of BMW OF NORTH AMERICA, INC.
