(Installing the cover in the water channel on the left and right)

Check

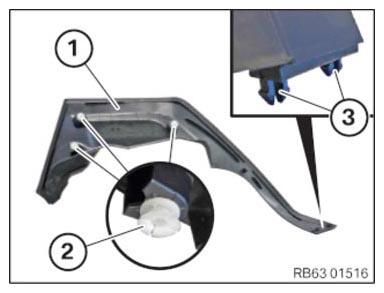

• Check clips (2) and guides (3) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» One or more clips (2) are damaged.

Measure

• Replace clips.

Result

» One or more guides (3) are damaged.

Measure

• Replace the cover (1).

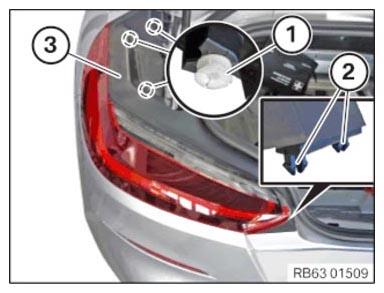

• Insert cover (3) into the guides (2).
• Clip in cover (3) into the clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.
