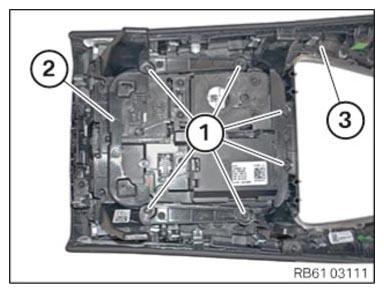

(Installing the bracket on the center console trim)

• Position the bracket (2) on the center console trim (3).
• Tighten down screws (1).

(TIGHTENING TORQUES SPECIFICATION)

Bracket to center console trim
screw	Tightening torque	1.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
