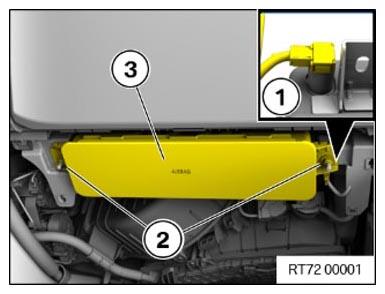

(Installing the airbag module for the driver knee protection)

NOTE: Description is for right component only. The procedure on the left side is identical.

• Replace nuts (2).

  Parts:  Nuts

• Position the airbag module (3) for the driver knee protection and tighten the nuts (2).
  (TIGHTENING TORQUES SPECIFICATION)



  Knee airbag module to holder
  hexagon nut M6 Replace nuts.	tightening torque	8 Nm

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
