(Installing both outer A-pillar trim panels)

Check

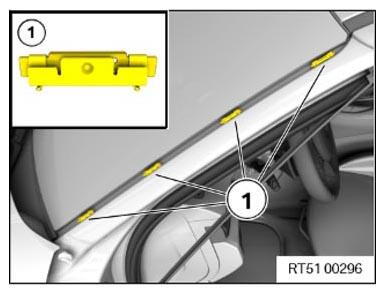

• Check retaining clips (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Retaining clip (1) is damaged.

Measure

• Replace retaining clip (1).

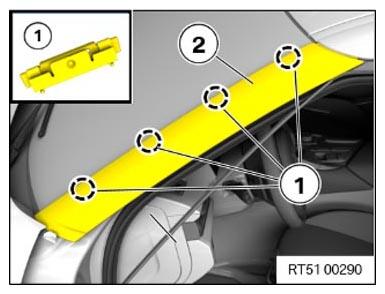

• Position the A-pillar trim panel (2) and clip it into the retaining clips (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

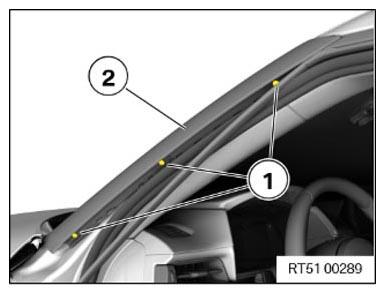

• Tighten screws (1) on the A-pillar trim panel (2).
  (TIGHTENING TORQUES SPECIFICATION)



  A-pillar trim panel to body
  Oval-head self-tapping screw with lug	tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

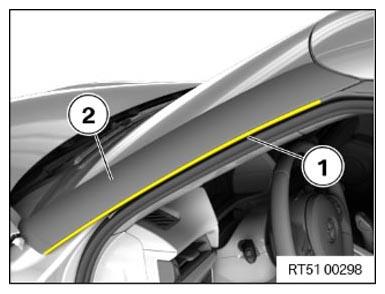

• Clip the seal (1) of the side frame into the A-pillar trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.
