(Installing all ignition coils)

NOTE: The description is provided only at one component. The procedure is the same for all other components.

(TIGHTENING TORQUES SPECIFICATION)

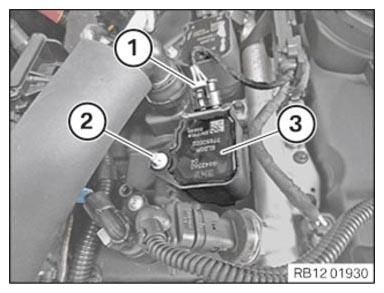

Ignition coil
Screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

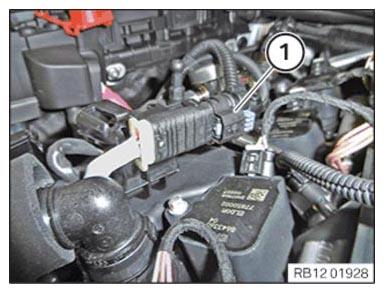

Connect connectors (1) and lock.
The connector (1) must engage audibly.

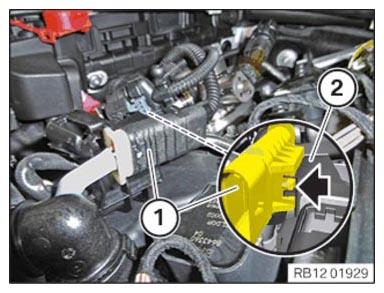

Connect the connector (1) with the holder (2) and lock (arrow).
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.
