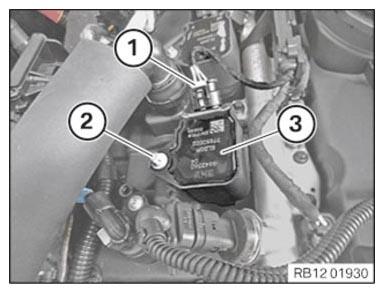

(Install the ignition coil of the first cylinder)

• Install ignition coil (3).
• Tighten down screw (2).

(TIGHTENING TORQUES SPECIFICATION)

Ignition coil
Screw	Tightening torque	8 Nm

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
