(Install the cylinder head cover acoustic cover)

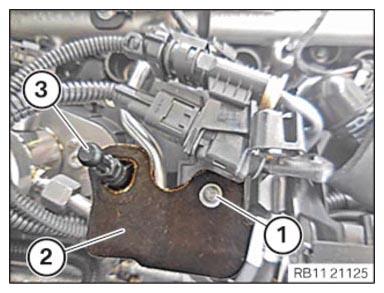

- Feed in and position acoustic cover (2) at ball hub (3).

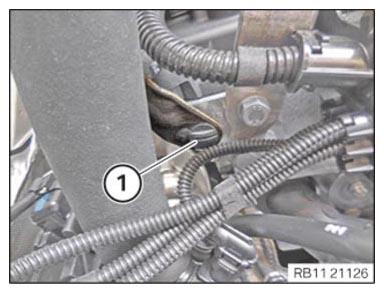

- Tighten down screw (1).
(TIGHTENING TORQUES SPECIFICATION)
| Acoustic cover (side) to cylinder head cover |
| TS6 x 20 |
Tightening torque |
6 Nm |
