(Disconnect the refrigerant line from the expansion valve)
(Disconnect the refrigerant line from the expansion valve)
CAUTION:
Residual pressure in the air conditioning system.
Injury hazard!
Wear safety goggles and protective gloves when disconnecting the refrigerant line.
Close the refrigerant lines with seal plugs.

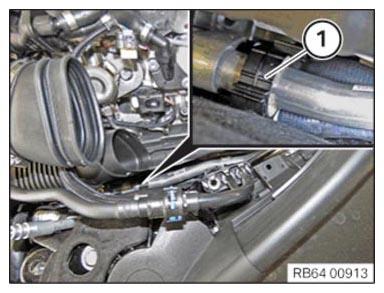

Open the holder (1).
Courtesy of BMW OF NORTH AMERICA, INC.

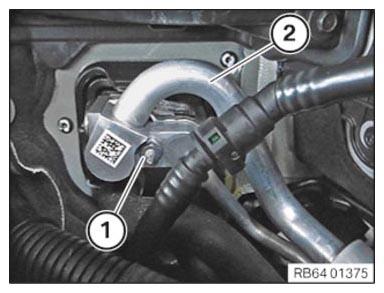

Loosen nut (1).
Remove the refrigerant line (2) and set it aside.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
