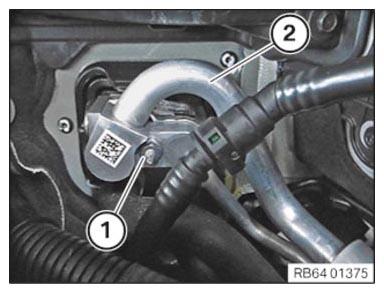

(Connect the refrigerant line to the expansion valve)

• Replace O-rings.

  Parts:  O-rings

• Correctly position the refrigerant line (2).
• Tighten nut (1).
  (TIGHTENING TORQUES SPECIFICATION)



  Refrigerant line to expansion valve/connecting piece
  M6	Tightening torque	13 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

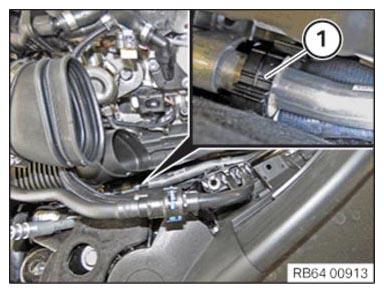

• Close the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.
