(Attach the electric auxiliary coolant pump for the charge air cooler and/or air conditioning condenser)

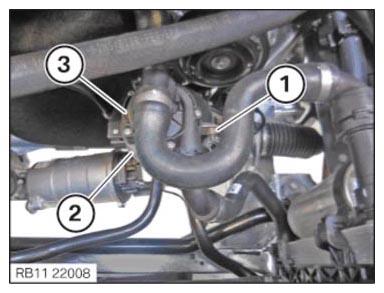

• Feed in and position the electrical auxiliary coolant pump (3).
• Insert and install the holder (2).
• Tighten nut (1).

(TIGHTENING TORQUES SPECIFICATION)

Electric coolant pump to holder
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
