(Attach the control unit holder)

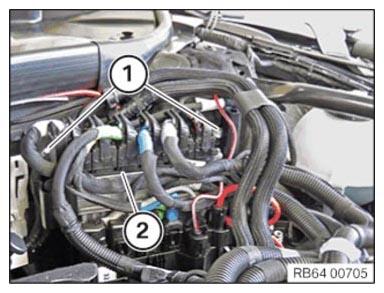

- Correctly position the E-Box (2).
- Tighten down screws (1).(TIGHTENING TORQUES SPECIFICATION)

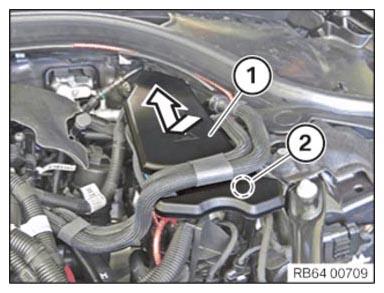

Control unit bracket at the shock tower Hexagon screw tightening torque 8 Nm - Correctly position the cover (1) and shift it in the direction of the arrow.
- The cover (1) must engage correctly in this area (2).
