Removing the clean air pipe with the resonator

Preliminary work

• Refer to REMOVING THE ACOUSTIC COVER .

• Unlock the locks (1)  .
• Feed the engine ventilation line (2)  out and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock plug connection (1)  and disconnect.
• Loosen clamp (2)  .
• Unfasten clamp (3)  .
• Disconnect the clean air pipe with resonator from the intake filter housing.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Press and hold the clean air pipe with the resonator (1)  in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version A:
• Unlock and disconnect the tank ventilation line (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen the clamp (arrow).
• Unlock plug connection (1)  and disconnect.
• Unlock the clamp (2)  .
• Feed the clean air pipe out with the resonator (3)  and remove it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:
• Unlock plug connection (1)  and disconnect.
• Loosen clamp (2)  .
• Unlock and detach the line (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

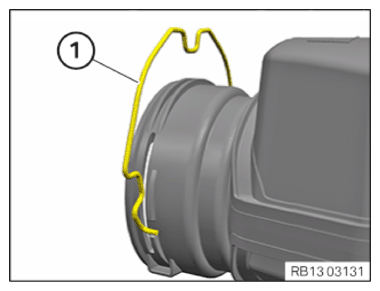

• Unlock the clamp (1)  and snap it in this position.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock the clean air pipe with the resonator (1)  and detach it.
• Feed the clean air pipe out with the resonator (1)  and remove it.

  Courtesy of BMW OF NORTH AMERICA, INC.
