Installing the clean air pipe with the resonator

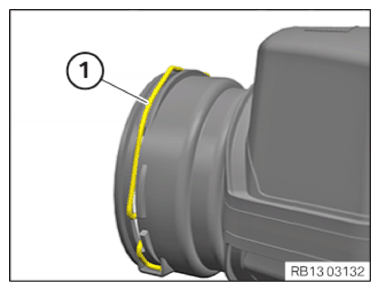

• Check the seal (1)  for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Replacing the damaged seal

• Remove damaged seal.
• Clean the gasket groove (1)  with a dry cloth.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket.

  Parts:  Seal

  Parts:  Seal

• Install the seal dry without lubricant or mounting agent.
  NOTE: TECHNICAL INFORMATION
  Incorrect assembly is possible. Ensure correct installation position.
• Thread in seal and install.

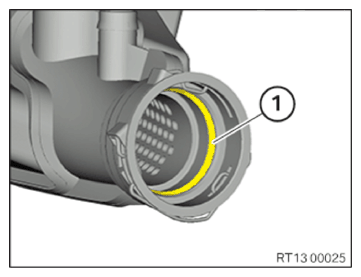

• Make sure that the seal is installed correctly in the gasket groove (1)  .
• Make sure that the sealing lip (2)  is directed to the inside as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version A:

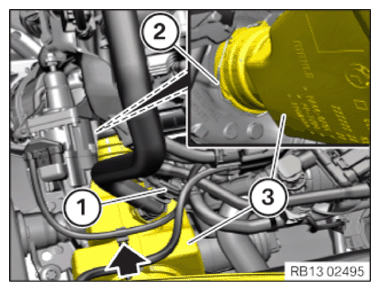

• Guide in and install the clean air pipe with resonator (3)  .
• Lock clamp (2)  .

  Clamp (2)  must engage audibly.

• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

• Secure clamp (arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

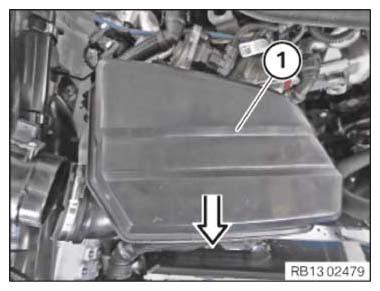

• Press the clean air pipe with resonator (1)  in the arrow direction and hold it.

  Courtesy of BMW OF NORTH AMERICA, INC.

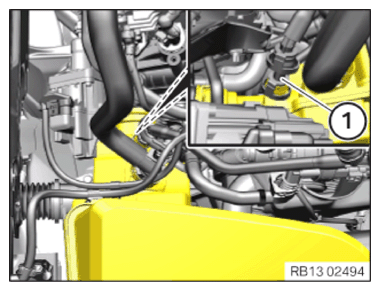

• Connect and lock tank vent line (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

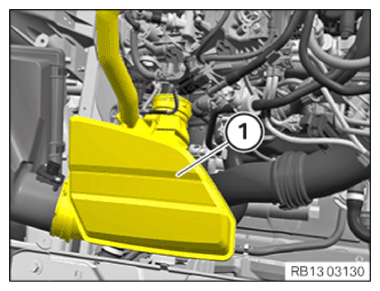

• Install the clean air pipe with resonator (1)  and connect it.

  The clean air pipe with resonator (1)  must snap in audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lock clamp (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

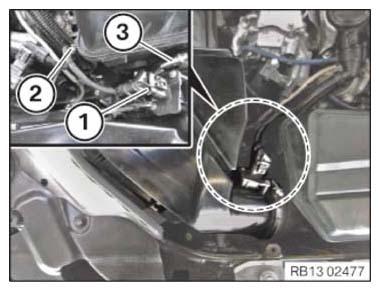

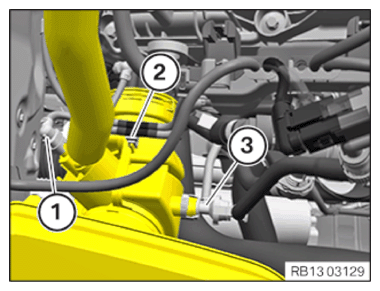

• Connect line (3)  .

  Line (3)  must engage audibly.

• Secure clamps (2)  .
• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the clean air pipe with resonator to the intake filter housing.
• Tighten clamp (3)  .
  TIGHTENING TORQUES SPECIFICATION



  Clean air pipe to upper section of intake filter housing
  Clamp	Tightening torque	3 Nm

• Secure the clamp (2)  .
• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

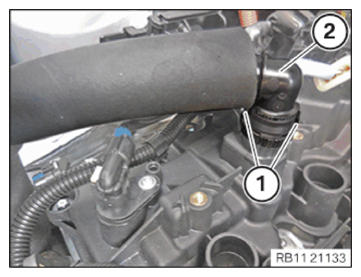

• Insert and install the engine ventilation line (2)  .
• Ensure that locks (1)  engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ACOUSTIC COVER .
